Ezifit In-Wall Exhaust Fan – EIE150
Performance Curve - EIE150
Description
The EziFit In-Wall exhaust fan mounts flush with the exterior wall of the building. It is barely visible, very powerful and easily accessible if cleaning or maintenance is required. It provides the most effective solution for exhausting air from downstairs rooms
in two storey homes.
Features
- Finishes flush to the external wall of the building.
- Neutral colour grille complements most brick colours.
- Fitted with insect-proof cover.
- Connects to 150mm diameter duct.
- The unit can exhaust from a number of points.
- Provides quiet, powerful exhaust.
- 3-speeds can be obtained using the DSS1-16, 3-speed switch (optional).
- Duct and grille kits are available (optional).
Construction
Injection moulded plastic grille and housing.
Backward-curved centrifugal fan with non-stalling characteristics.
Motors
Type - external rotor, squirrel cage induction motor.
Electrical supply - 230V, single-phase, 50Hz.
Bearings - sealed for life, ball.
3 speeds can be obtained using the optional DSS1- 16 switch.
Class B motor, IP44 rated.
Internal Thermal Protection
Manual-reset thermal protection
Testing
Air flow tests to ISO5801:1997
Noise tests to BS848:Part 2 1985
Suggested Specification
The Ezifit In-Wall external wall exhaust fans shall be as supplied by Fantech Pty Ltd.
| Setting | Speed [rps] | Avg. dBA @ 3m | kWatts (Input) | Amps | Max.°C | Approx. Weight [kg] |
|---|
| Lo | 21 | 31 | 0.05 | 0.22 | 65 | 2.8 |
| Med | 32 | 44 | 0.06 | 0.25 | 65 | 2.8 |
| Hi | 40 | 49 | 0.075 | 0.29 | 65 | 2.8 |

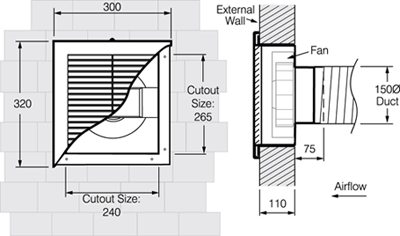

Dimensions
*All dimensions in mm, unless otherwise stated
Wiring Diagram
Diagram shown is for single-speed only.
For 2-speed and special motors, contact Fantech for details.
Ancillaries
