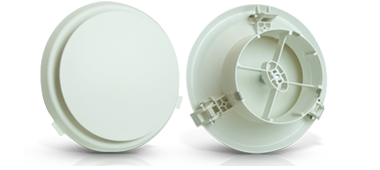

Ceiling Grilles Type ALG Exhaust air valve
Features
ALG grilles are designed for ceiling mounting in exhaust applications. The grilles incorporate an adjustable air valve.

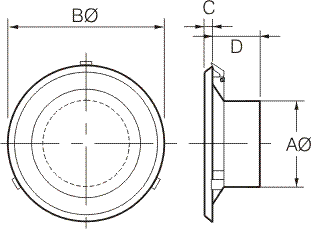

Dimensions
| Product Code | A | B | C | D |
|---|
| IALG150 | 150 | 266 | 16 | 95 |
| IALG200 | 200 | 315 | 16 | 95 |
| IALG250 | 250 | 385 | 16 | 100 |
| IALG300 | 300 | 440 | 16 | 100 |
