Ezifit Thru Wall Exhaust Fan

Performance Curve - EWE154

Description

The Ezifit Thru Wall is an exterior surface mounted exhaust fan that is very powerful and easy to install. It is ideal for downstairs toilets, laundries and kitchens, or retrofitting an existing in-line fan system. It provides easy access for cleaning and is suitable for applications requiring long lengths of duct.
Features
  • Designed for exterior surface mounting.
  • Compact design makes it ideal for installing into tight spaces.
  • Provides quiet, powerful exhaust.
  • Can be used with a variable speed controller.
  • Grey Colorbond finish that can be painted to match wall colour.
  • Fitted with insect-proof mesh.
  • Connects to 150mm diameter duct.
  • Can exhaust from a number of points.
  • Duct and grille kits available.
Construction

Metal cover with shade grey Colorbond finish.
Insect-proof mesh included.
Backward-curved centrifugal fan with non-stalling characteristics.

Motors

Type - external rotor, squirrel cage induction motor.
Electricity supply - 230V, single-phase, 50Hz.
Bearings - sealed for life ball.
Speed-controllable using electronic speed controller.
Class B motor, IP44 rated.

Internal Thermal Protection

Manual-reset thermal protection

Testing

Air flow tests to ISO5801:1997
Noise tests to BS848:Part 2 1985

Suggested Specification

The Ezifit Thru Wall Fans shall be as supplied by Fantech Pty Ltd.

Technical Data - EWE154

Speed [rps]Avg. dBA @ 3mkWatts (Input)AmpsMax.°CApprox. Weight [kg]
23350.030.16604

Sound Data

Type631252505001K2K4K8K
Inlet5352575548433627

Dimensions

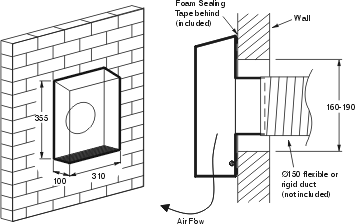

Dimension Drawing
ABCDE
31035514275100

*All dimensions in mm, unless otherwise stated

Wiring Diagram

Wiring Diagram

Diagram shown is for single-speed only.
For 2-speed and special motors, contact Fantech for details.
