Description

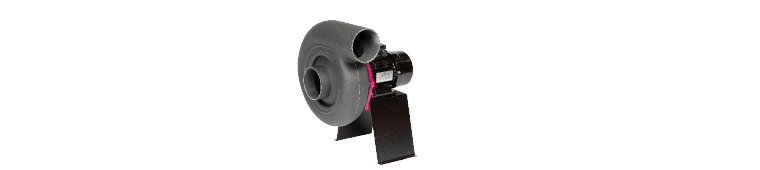

The STORM Series is a low air volume centrifugal type fan suitable for operation in corrosive applications such as fume capture arms, gas scrubbers or chemical cabinets.

There are 4 models in the range to suit duct diameters from 75 to 160mm.

Typical Application
Medium pressure centrifugal fan suitable for operation in corrosive applications such as fume capture arms, gas scrubbers or chemical cabinets.

Features

Cowl rotates to 8 discharge positions by 45° increments
LG handing only
Air flows up to 500L/s
Static Pressures up to 1950Pa
High density, UV treated polypropylene housing and impeller
Epoxy coated metal stand
Forward curved centrifugal impeller
Direct drive, asynchronous motor, single or three phase, IP55
Explosion proof fans available on request
Recommended up to 60°C

Single Phase Models

Product Code	Diameter [mm]	Speed [rps]	kW	Amps	Avg. dB(A) @ 3m	Max Pressure [Pa]	Max Volume [m³/sec]
STORM102S0009	75	48	0.09	0.76	51	425	0.08
STORM122S003	90	48	0.37	2.7	60	809	0.14
STORM142S011	125	48	1.1	6.7	66	1400	0.40
STORM104S0006	75	24	0.06	0.57	36	104	0.04
STORM124S002	90	24	0.25	2.2	45	205	0.07

Three Phase Models

Product Code	Diameter [mm]	Speed [rps]	kW	Amps	Avg. dB(A) @ 3m	Max Pressure [Pa]	Max Volume [m³/sec]
STORM102B0009	75	48	0.09	0.32	51	431	0.08
STORM122B003	90	48	0.37	1.04	60	809	0.14
STORM142B011	125	48	1.1	2.41	66	1390	0.40
STORM162B022	160	48	2.2	4.4	70	2039	0.51
STORM104B0006	75	24	0.06	0.3	36	104	0.04
STORM124B002	90	24	0.25	0.75	45	204	0.07
