Ezifit Thru Roof Supply Air – ECE152SM
Performance Curve - ECE152SM
Description
The Ezifit Thru Roof supply air fan provides fresh filtered air to internal spaces and is suitable for tile or metal deck type roofs. It includes a high performance fan that makes it suitable for long duct runs and a multiple number of supply points.
It produces low noise within the occupied space because
the fan is mounted outside the building.
Features
- Robust, galvanised steel construction.
- Fitted with a replaceable G2 dust filter.
- Suitable for tile and metal deck type roofs.
- Easy and simple to install.
- Comes with convenient 3-pin plug and lead.
- Powerful centrifugal fan allows it to provide air to a number of points/rooms.
- High quality 'Continuous Rated' motor.
- Speed-controllable with electronic controller.
- Powder coated finish is an optional extra.
Construction
Galvanised steel construction
Backward-curved centrifugal impellers
Duct support straps and removable dust filter included
Roof flashing piece included, specify roof type (tile or metal) at time of order
Motors
Type - external rotor, squirrel cage induction motor
Electricity supply - 230V, single-phase, 50/60Hz
Bearings - sealed-for-life, ball
Can be fitted with speed-controller
IP44 motor protection
Internal Thermal Protection
Manual reset protection is supplied as standard.
Testing
Air flow Tests to ISO5801:2007
Noise tests to ISO3744: 2010
Suggested Specification
The roof ventilators shall be of the Ezifit Thru Roof supply air series as designed and manufactured by Fantech Pty Ltd.
The backward-curved centrifugal fans shall be direct-driven by continuous rated speed-controllable external rotor motors with manual-reset thermal protection.
They shall be constructed from galvanised steel, be suitable for tile and metal deck type roofs and include a 3-pin plug and lead.
All models shall be fully tested as a complete assembled unit to ISO5801:2007 for air flow and ISO3744: 2010 for noise.

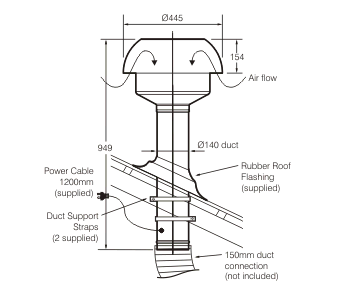

Technical Data - ECE152SM
| Speed [rps] | Avg. dBA @ 3m | kWatts (Input) | Amps | Max.°C | Approx. Weight [kg] |
|---|
| 45 | 51 | 0.12 | 0.53 | 60 | 9.5 |
| Type | 63 | 125 | 250 | 500 | 1K | 2K | 4K | 8K |
|---|
| Inlet | 62 | 63 | 71 | 71 | 65 | 60 | 55 | 43 |
Wiring Diagram
Diagram shown is for single-speed only.
For 2-speed and special motors, contact Fantech for details.
